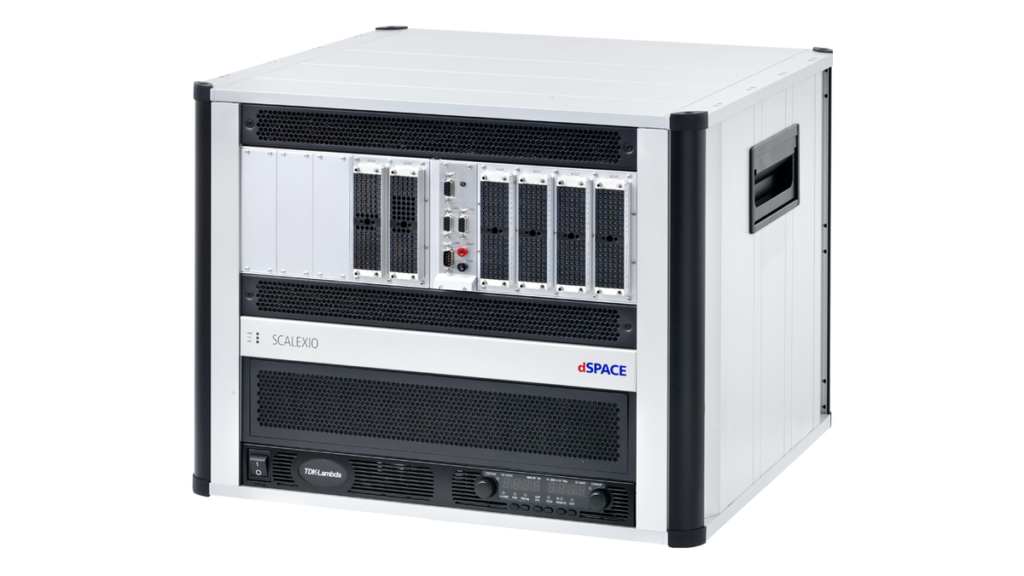

SCALEXIO Rack System

Off-the-shelf HIL simulator with up to 12 height units
The SCALEXIO rack system is very flexible due to extensive I/O features. All hardware is software-configurable, making it easy to adapt the system to changing project requirements.

HIL simulator for a wide range of applications

Integrated Failure Insertion Unit

Integrated signal conditioning

SCALEXIO Rack System
SCALEXIO Rack System 1

Key Benefits

The SCALEXIO rack version is very flexible due to extensive I/O features. All hardware is software-configurable, which makes it easy for you to adapt the system to changing project requirements. The rack version comes with integrated signal conditioning and a Failure Insertion Unit. The SCALEXIO Processing Unit acts as the computation node and is also integrated in the system.

Programmable Power Supplies

The programmable power supply unit feeds the components to be tested and allows for simulating real voltages, such as the vehicle battery voltage during start-up. The power supply unit is remotely controlled from the real-time model.
Various power supplies are available for different applications, for example:

  • 0 … 20 V
  • 0 … 60 V

Fault Simulation

For fault simulation, the SCALEXIO rack system provides I/O boards with integrated fault simulation, namely the HighFlex boards (DS2601, DS2621, DS2642, and DS2671) and MultiCompact I/O Units (DS2680 and DS2690).

Hardware and Software for SCALEXIO Rack

You can use all SCALEXIO boards in a SCALEXIO Rack along with a wide range of dSPACE software to configure settings and implement models, among other things.
